Description

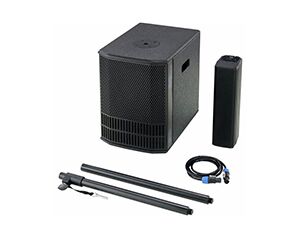

The dB Technologies ES602 is a lightweight and portable column PA system designed for small to mid-sized live performances, corporate events, and mobile DJ setups. It combines a 10″ subwoofer with a passive column top containing four 3″ neodymium drivers, offering full-range, high-quality sound in a compact and easy-to-set-up design. With 800 watts of peak power and advanced DSP processing, the ES602 delivers clarity, punch, and flexibility in a sleek, modular format.

Key Features

• Powerful Output: 800W peak via Digipro G3 Class-D amplifier

• Full-Range Sound: 10″ subwoofer + 4 x 3″ neodymium drivers

• Wide Coverage: 95° horizontal and 65° vertical dispersion

• DSP with 8 Presets: Tailor your sound for club, speech, playback, monitor, and more

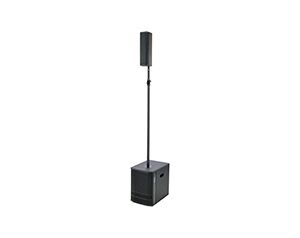

• Fast Setup: Modular design with pole-mountable top

• Dual Input Options: Combo XLR/Jack and RCA stereo input

• Balanced Link Output: For connecting additional systems

• Rugged Construction: Sub made from 15mm birch plywood; top in durable polypropylene

• Portable: Integrated handles and compact form for easy transport

Specifications

System

• Type: Bi-amped column system

• Amplifier: Digipro G3 Class-D

• Peak Power: 800 W

• Frequency Response (-10 dB): 44 Hz – 15,000 Hz

• Max SPL: 118 dB

• Crossover Frequency: 210 Hz

Drivers

• LF: 1 x 10″

• HF/MF: 4 x 3″ neodymium

Dispersion

• Horizontal: 95°

• Vertical: 65°

Inputs / Outputs

• 1 x XLR/Jack combo input (mic/line switchable)

• 1 x RCA stereo input

• 1 x XLR balanced output

DSP Presets

• Flat, Bass Boost, Bass Reduction, Playback, Club, Vocal, Monitor, Antifeedback

Cabinet

• Subwoofer: 15mm birch plywood

• Top Speaker: Polypropylene

• Handles: 2 side handles on subwoofer

• Mounting: D25 mm pole

Dimensions

• Subwoofer (W x H x D): 300 x 400 x 430 mm

• Top Speaker (W x H x D): 95 x 360 x 137 mm

• Weight: Subwoofer 14.2 kg, Top Speaker 1.9 kg

The dB Technologies ES602 is an all-in-one PA system that combines portability, power, and simplicity. With high-quality components, wide dispersion, and intelligent DSP processing, it’s perfect for performers, presenters, or DJs who need reliable sound in a compact footprint.

Rent it now at CINESOUK – a brand by BROADWAY PRODUCTIONS SARL.
