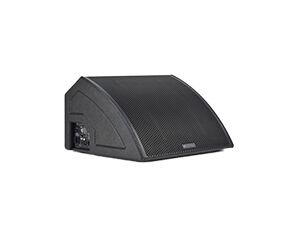

dB Technologies FMX 15 - Stage Monitor

dB Technologies FMX 15 – Stage Monitor

From 450,00 Dhs

Specifications:

Acoustic Data

  • Speaker Type: 2-way active coaxial stage monitor

  • Frequency Response (-10 dB): 46 Hz – 19,000 Hz

  • Max SPL: 128 dB

  • Coverage Pattern: 60° x 90° rotatable horn

  • Crossover Frequency: 1740 Hz (24 dB/oct Linkwitz-Riley)

Drivers

  • Low Frequency Driver: 15″ woofer with 2″ voice coil

  • High Frequency Driver: 1″ compression driver with 1.3″ voice coil

  • Coaxial Design: Yes

Amplifier

  • Amp Technology: Class D

  • RMS Power Output: 600 W

  • Peak Power Output: 1200 W

  • Cooling: Convection

Processing (DSP)

  • DSP Resolution: 28/56-bit, 24-bit AD/DA converters

  • Sampling Rate: 48 kHz

  • System Presets: 8 selectable EQ presets

  • FIR Filters: Yes

  • Limiter: Dual Active Peak, RMS, and Thermal Limiter

Connections

  • Input: 1 x XLR balanced

  • Output: 1 x XLR link out

  • Input Sensitivity: -10 dBu / +4 dBu

  • Power Supply: IEC socket with power cord

Cabinet

  • Material: Plywood

  • Finish: Black textured paint

  • Grille: Full front metal grille

  • Handles: 1 integrated side handle

  • Pole Mount: 36 mm standard socket

  • Monitor Angles: 45° and 60°

Physical

  • Dimensions (W x H x D): 500 x 340 x 500 mm

  • Weight: 16.9 kg

SKU: EFP-SES5X-001-1 Categories: , ,

Description

The dB Technologies FMX 15 is a professional 2-way active stage monitor designed to deliver clear, powerful, and consistent sound for live performances. Featuring a 15-inch coaxial woofer and a 1-inch compression driver, it offers accurate phase alignment and wide sound dispersion. Whether used as a floor wedge or mounted on a pole, the FMX 15 provides excellent coverage and high output.

Its robust Class D amplifier delivers 600W RMS (1200W peak), making it ideal for demanding stage environments. In addition, the advanced DSP with FIR filters and 8 EQ presets allows users to fine-tune the output to suit vocals, instruments, or speech.

Key Features

  • Speaker Configuration: 15″ LF driver with 2″ voice coil and 1″ HF compression driver with 1.3″ voice coil

  • Amplification: Class D, 600W RMS / 1200W peak

  • Frequency Response: 46 Hz – 19,000 Hz (-10 dB)

  • Maximum SPL: 128 dB

  • DSP: 28/56-bit with 24-bit/48 kHz converters and 8 EQ presets

  • Crossover Frequency: 1740 Hz, 24 dB/octave slope

  • Coverage: 60° x 90° rotatable horn for flexible dispersion

  • Construction: Rugged plywood enclosure with integrated handle and pole mount

  • Mounting: Floor wedge or 36 mm pole socket

  • Dimensions: 500 x 340 x 500 mm

  • Weight: 16.9 kg

The dB Technologies FMX 15 offers a powerful and flexible monitoring solution for professionals. With its coaxial design, high SPL, and digital processing, it ensures precise sound on stage—whether for vocals, instruments, or playback. Durable and adaptable, it’s built for touring, rentals, or fixed installations.



Rent it now at CINESOUK – a brand by BROADWAY PRODUCTIONS SARL.

Additional information

Days of effective usage

1day (x1), 2days (x1,5), 3days (x2), 4days (x2,5), 5days (x3), 6-7days (x3,5), 8-10days (x4,5), 11-14days (x5,5), 15-18days (x6,5), 19-21days (x7,5)
